Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Product Name: |
Tungsten Carbide Nozzle |
Model Number: |
Various |
Alloy Specification: |
K30 |
Particle: |
Medium |
Size: |
Custom Made |
Surface Treatment: |
Plain/grinding/polished As Your Request |
Package: |
Paper Case To Every Pc,carton Out Wrapped |
Feature: |
High Life |
Place Of Origin: |
Hunan, China (Mainland) |
Material: |
Ultrafine Grain Carbide Material |
Product Name: |
Tungsten Carbide Nozzle |
Model Number: |
Various |
Alloy Specification: |
K30 |
Particle: |
Medium |
Size: |
Custom Made |
Surface Treatment: |
Plain/grinding/polished As Your Request |
Package: |
Paper Case To Every Pc,carton Out Wrapped |
Feature: |
High Life |
Place Of Origin: |
Hunan, China (Mainland) |
Material: |
Ultrafine Grain Carbide Material |

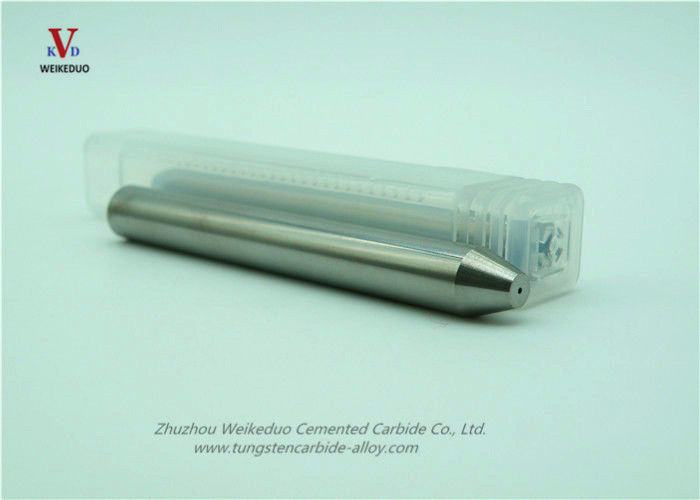

Custom Made 96HRA Tungsten Carbide Nozzle Ultrafine Grain Carbide Material
Tungsten Carbide Nozzle Introduction
Material: Nano Carbide / ultrafine grain tungsten carbide
Density: 15.7g/cm³
Rockwell hardness: 96HRA
Size: as below and also can cutomize any size
Welcome to contact us to get the sample to test our waterjet nozzles good quality!
Please let us know the clear size including OD,ID & length(mm).
Tungsten Carbide Nozzle spcifications:
Use superfine nanometer tungsten carbide particles, the wear-resisting performance to the next level, superior
wear resistance makes it far beyond the ordinary tungsten carbide,The service life of the nozzle.Cobalt
content of less than 0.6%, density of 15.45 g/cm3 ~ 15.6 g/cm3, bending 2000 mpa to 2400MPa.Super oxygen resistance, small thermal expansion coefficient, unique high hardness and density, far beyond the other similar products, the use of hard Alloy tube abrasion resistance stronger.
Tungsten Carbide Nozzle application:
• Wet Blasting
• Suction Blast
• Mirco Abrasive
• Scrubber
• Descaling
• Slurry Jet
Tungsten Carbide Nozzle Parameters
|
NO. |
model |
ΦD(mm) |
Φd1(mm) |
L(mm) |
θ° |
а° |
|
1 |
6.35*1.02*76.2 |
6.35 |
1.02 |
76.2 |
40 |
28 |
|
2 |
6.35*0.76*76.2 |
6.35 |
0.76 |
76.2 |
40 |
28 |
|
3 |
6.35*0.91*76.2 |
6.35 |
0.91 |
76.2 |
40 |
28 |
|
4 |
6.35*1.02*101.6 |
6.35 |
1.02 |
101.6 |
40 |
28 |
|
5 |
6.35*0.76*101.6 |
6.35 |
0.76 |
101.6 |
40 |
28 |
|
6 |
7.14*1.02*76.2 |
7.14 |
1.02 |
76.2 |
40 |
28 |
|
7 |
7.14*0.76*76.2 |
7.14 |
0.76 |
76.2 |
40 |
28 |
|
8 |
7.14*0.91*76.2 |
7.14 |
0.91 |
76.2 |
40 |
28 |
|
9 |
9.45*1.02*76.2 |
9.45 |
1.02 |
76.2 |
40 |
28 |
|
10 |
9.45*0.76*76.2 |
9.45 |
0.76 |
76.2 |
40 |
28 |
|
11 |
9.43*1.02*76.2 |
9.43 |
1.02 |
76.2 |
40 |
28 |
|
12 |
9.43*0.76*76.2 |
9.43 |
0.76 |
76.2 |
40 |
28 |
|
13 |
9.45*1.02*79 |
9.45 |
1.02 |
79.0 |
40 |
28 |
|
14 |
9.45*0.76*79 |
9.45 |
0.76 |
79.0 |
40 |
28 |
|
15 |
9.45*1.02*101.6 |
9.45 |
1.02 |
101.6 |
40 |
28 |
|
16 |
9.45*0.76*101.6 |
9.45 |
0.76 |
101.6 |
40 |
28 |
|
17 |
9.45*1.02*120 |
9.45 |
1.02 |
120.0 |
40 |
28 |
|
18 |
9.45*0.76*120 |
9.45 |
0.76 |
120.0 |
40 |
28 |
|
19 |
7.14*1.02*101.6 |
7.14 |
1.02 |
101.6 |
40 |
28 |
|
20 |
7.14*0.76*101.6 |
7.14 |
0.76 |
101.6 |
40 |
28 |
|
21 |
7.14*0.89*101.6 |
7.14 |
0.89 |
101.6 |
40 |
28 |
Tungsten Carbide Nozzle Details
