Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001:2008
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper,then paper boxs
Delivery Time: 15-20work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80tons/month
Name: |
Cemented Carbide Alloy Button |
Material: |
100% Virgin Material |
Color: |
Silvery Grey |
Model Number: |
Customized |
Size: |
Cusotmized |
Usage: |
Mining Tool |
Name: |
Cemented Carbide Alloy Button |
Material: |
100% Virgin Material |
Color: |
Silvery Grey |
Model Number: |
Customized |
Size: |
Cusotmized |
Usage: |
Mining Tool |

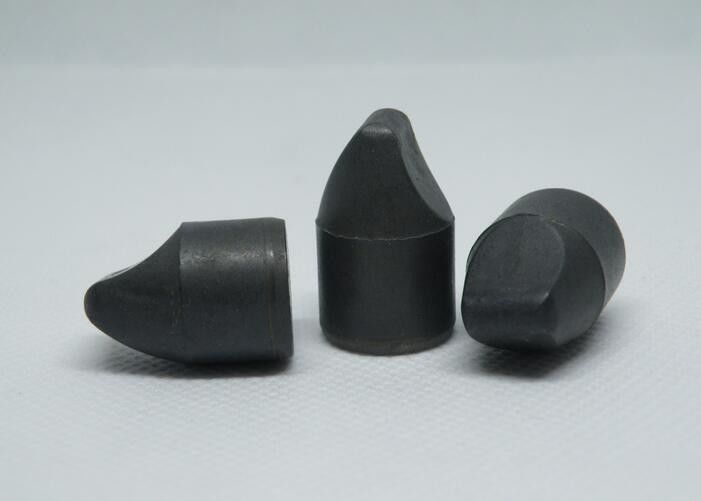

High Strength Cemented Carbide Buttons Spoon Insert High Wear Resistance
Specifications
tungsten carbide button bits has superior wear resistance and impact toughness, and similar products with higher speed of drilling and digging.Series of ball tooth bit passivation
using cycle is long, not to grind the life span of about the same diameter RenPian grinding
head drill bit 5-6 times of life, is beneficial to save auxiliary working hours, physical labor
and reduce workers to speed up the project.
1. promise the 100% virgin material .
2. Sintere by vacuum sintering furnace and HIP machine with excellent specifications without any hole.
3. suply blank and surface passivation.
4. tungsten carbide button's high hardness of the cemented carbide and other characteristics are widely
used in mining and quarrying and cutting process, also may be placed on a heavy excavators used in bit.
5. we can product the goods according your drawing and sizes.
6. our new product grade's grain size can up to 6.0μm,highest wear-resisting and excellentest impact resistance.
| Product Number | Basic Size(mm) | |||||||
| Diameter(D) | Height(H) | Column height(h) | ||||||
| SS12317E12Q | 12.3 | 17 | 9.8 | |||||
| SS14321D14Q | 14.3 | 21 | 13.0 | |||||
| SS16223CD18Z | 16.2 | 23 | 12.0 | |||||
| SS19030AD18Z | 19.2 | 30 | 15.5 | |||||
| SS22033D20Q | 22.3 | 33 | 17.5 | |||||
| SS26340D25Z | 26.3 | 40 | 18.1 | |||||
| SS30345D25Z | 30.3 | 45 | 17.5 | |||||
Welcome your inquiry.
