Highlight:
                                                                                                                                                                                                                                                tungsten carbide products, tungsten carbide wear parts


Name:	Tungsten Carbide Buttons	Material:	100% Virgin Tungsten Carbide
Strength::	2700-3000	Grade::	YG11C/YG15C
Hardness::	87-90	Application:	Mining, Concrete Drilling And So On

Name:	Tungsten Carbide Buttons
Material:	100% Virgin Tungsten Carbide
Strength::	2700-3000
Grade::	YG11C/YG15C
Hardness::	87-90
Application:	Mining, Concrete Drilling And So On

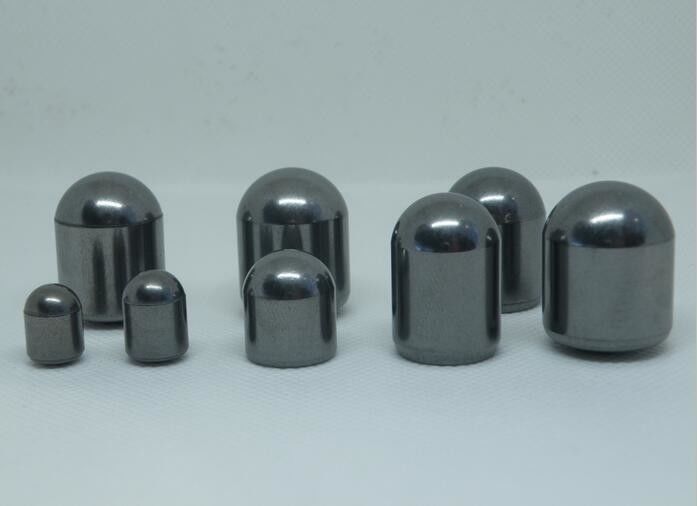

Mining Tools Tungsten Carbide Buttons / Teeth Spherical Insert For Oil Field

Mining Tools Tungsten Carbide Buttons / Teeth Spherical Insert For Oil Field

Product Description

1. High wear & impact resistance;

2. Advanced equipment;

3. A long lifetime;

4. High performance.

Advantages

1. Made from 100% virgin raw material;

2. Produced with advance equipment and process;

3. All products go through in-process and final inspection;

4. Stable and continuous production ability;

5. Quality and quantity assured;

6. in standard / non- standard types;

7. One of our most hot selling items that we are currently producing

Main Details:

1. Resistance Wear: Some grades can outwear hardened steel by over 100 times

2. Resistance Corrosion: Grades with Nickel and Chromium binders are very resistant to acidic solutions

3. Impact Resistance: Tungsten cemented carbides are surprisingly tough considering their high hardness.

Product Name	Tungsten Carbide Buttons	Material	100% Virgin Raw Material
Color	Gray	Shape	Customized
Size	Customer's Request	Certification	ISO9001
Usage	Fast Cutting Speed	Type	Tungsten Carbide
Lead Time	5-15 Days	Tolerance	as per Customer's Request
Working Life	Long Work Time	MOQ	5 kg

Product Number	Basic Size(mm)

	Diameter(D)	Height(H)	Ball Radius(SR)
SQ08212AS15	8.2	12	4.2

SQ09213AS17	9.2	13	4.6

SQ10214S20	10.2	14	5.2

SQ11215S21	11.2	15	6

SQ12217S18	12.2	17	6.6

SQ13219S20	13.2	19	6.7

SQ14322S10	14.3	22	7.2

SQ16324AS30	16.3	24	8.8

SQ18327S33	18.3	27	9.2

SQ19225D20	19.2	25	9.6
